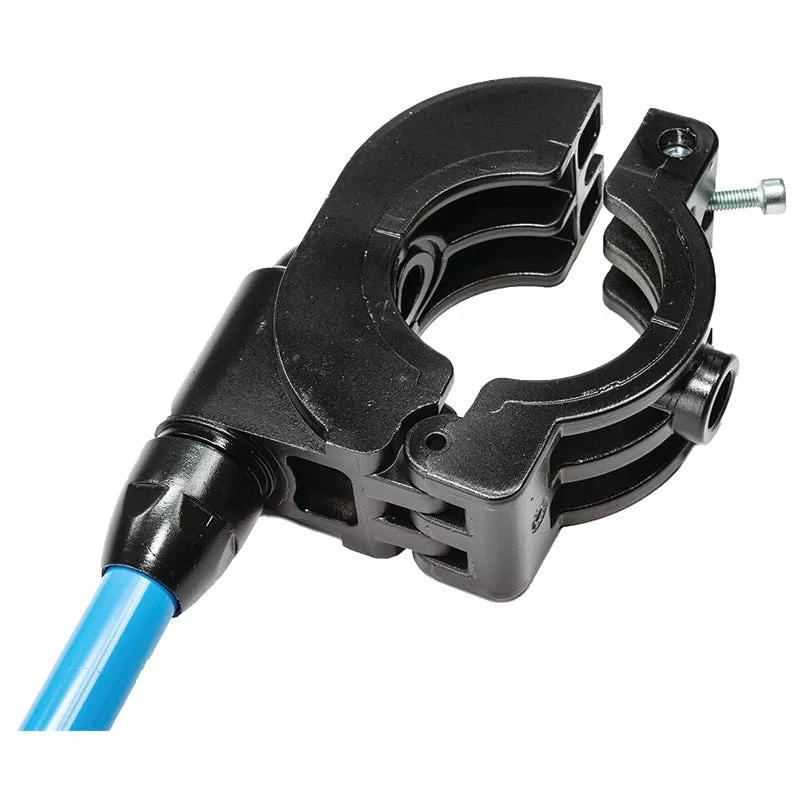

RapidAir FastPipe Saddle Drop Pipe x Pipe Branch Fitting

Description

The RapidAir FastPipe Saddle Drop lets you add a new drop leg or branch line anywhere along an existing FastPipe rigid aluminum air main in seconds, with no pipe cutting, threading, or system shutdown. Drill the main pipe with the matching FastPipe hole saw, seat the gasket, and clamp the saddle in place for a leak-free pipe-to-pipe connection.

Key features

• Adds a branch/drop line to an existing FastPipe rigid aluminum air main without cutting the pipe
• Pipe-x-pipe design connects directly to FastPipe blue aluminum pipe on both the main and the drop
• Fiberglass-reinforced composite (nylon) body on sizes up to 2″ corrosion-free and lightweight
• Reusable, modular fitting reconfigure or relocate drops as your shop layout changes
• For compressed air (non-potable) service on the RapidAir FastPipe system

Installation note

A FastPipe hole saw and saddle drop gasket are required (sold separately): use the F0043 9/16″ hole saw for 1″ main pipe, and the F0044 3/4″ hole saw for 1-1/2″ and 2″ main pipe.

Available sizes

• F2210 1″ Tube x 1″ Drop
• F4110 1-1/2″ Tube x 3/4″ Drop
• F4210 1-1/2″ Tube x 1″ Drop
• F5110 2″ Tube x 3/4″ Drop
• F5210 2″ Tube x 1″ Drop

Applications

Ideal for automotive and collision shops, fabrication and manufacturing floors, fleet maintenance, farms, and home garages running RapidAir FastPipe compressed air distribution anywhere you need to tap a workstation, tool drop, or air outlet off the main line quickly.

Genuine RapidAir FastPipe components are engineered to work together for fast, leak-free, modular compressed air piping. The saddle drop keeps your air system flexible expand or relocate drops without re-plumbing the main.
